ISOL-8 SubStation Integra for sale

About this product

We are offering for sale our ISOL-8 SubStation Integra ex-demo mains conditioner which has had light use from new.

Finish: Black/Black
Serial Number: N/A
Condition: Unmarked
Packaging: Yes
Accessories: N/A Requires Mains Cable
Delivery Options: In-store collection. Delivery available (ask for details).
Warranty: 12 months
New Price: £3,600
Saving: £700.00
Sale Price: £2,900.00

The ISOL-8 Substation Integra is a true high performance mains conditioning and distribution solution for a complete system. It combines all the features found in our acclaimed flagship SubStation LC and HC together in one high quality chassis. A 20 Amp rated Neutrik latching input connector allows the 16A total capacity to be exploited with a suitable mains connection. The inlet is centrally positioned to minimise electrical and magnetic interaction between the two filter groups, which are individually protected by high quality magnetic circuit breakers.

ISOL-8’s Substation Integra has two individual filter sections. There are four low to medium current outlets optimised for source components, and two high current outlets optimised for power hungry components such as amplifiers. All are served by a high capacity ISOL-8 Axis circuit which blocks any performance degrading DC present on the mains. All outputs are surge and spike protected. A custom wound choke also filters any noise present on the safety earth wiring.

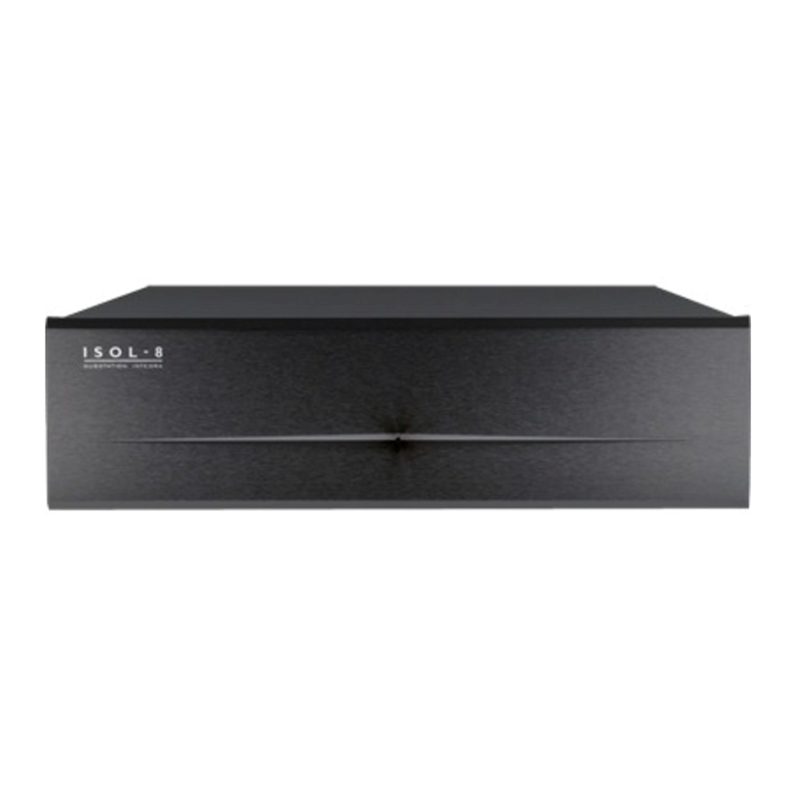

The ISOL-8 Substation Integra is engineered to provide a lifetime of reliable service. The beautifully crafted enclosure features a CNC engineered 10mm alloy front panel and aluminium lid.

All outlets are protected against dust and dirt to IP54. Premium polypropylene capacitors, Mundorf OFC inductors and ISOL-8 custom wound chokes ensure superior performance.

Wiring is silver plated copper with PTFE insulation throughout.

Technical Specifications

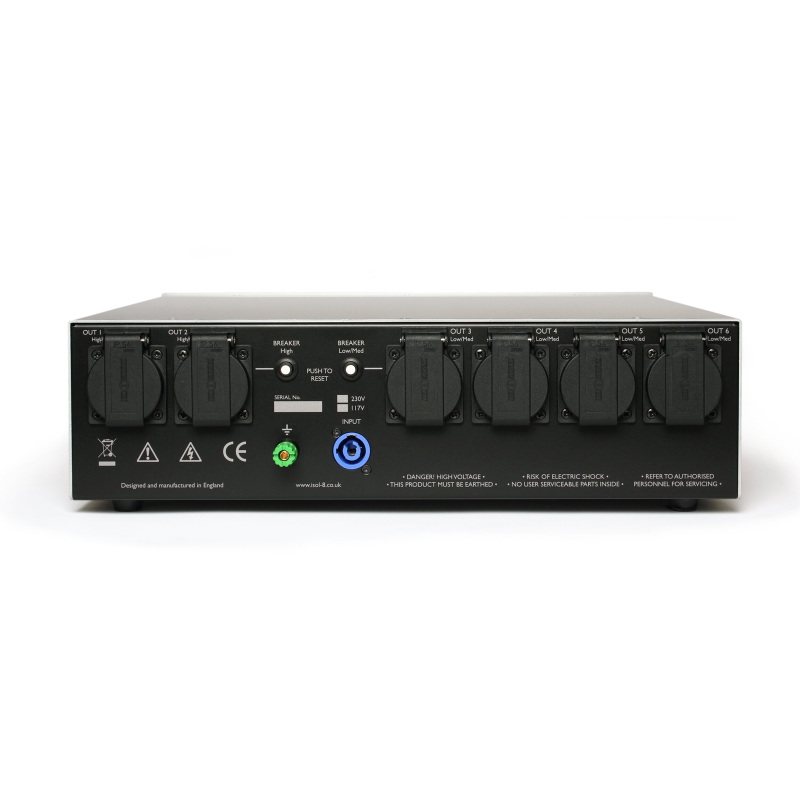

Number of available outlets: 6 (4 low/med current. 2 high current)
Type of outlets available: 13A British chassis sockets
Mains Inlet: 20A latching Neutrik powerCON (cable not supplied)
Dimensions: 435 x 131 x 410mm (W x H x D) excluding connectors
Weight: 9.9 Kg (11.5kg boxed)
Construction: Steel chassis with black finish.
Mains Voltage: 230VAC version for 220-240VAC
Maximum continuous Current: 6 Amps any one low/med power outlet, 6 Amps across all low/med power outlets, 16 Amps any one high power outlet, 16 Amps across all high power outlets, 16 Amps across all outlets
Protection: 2x rear panel circuit breaker
