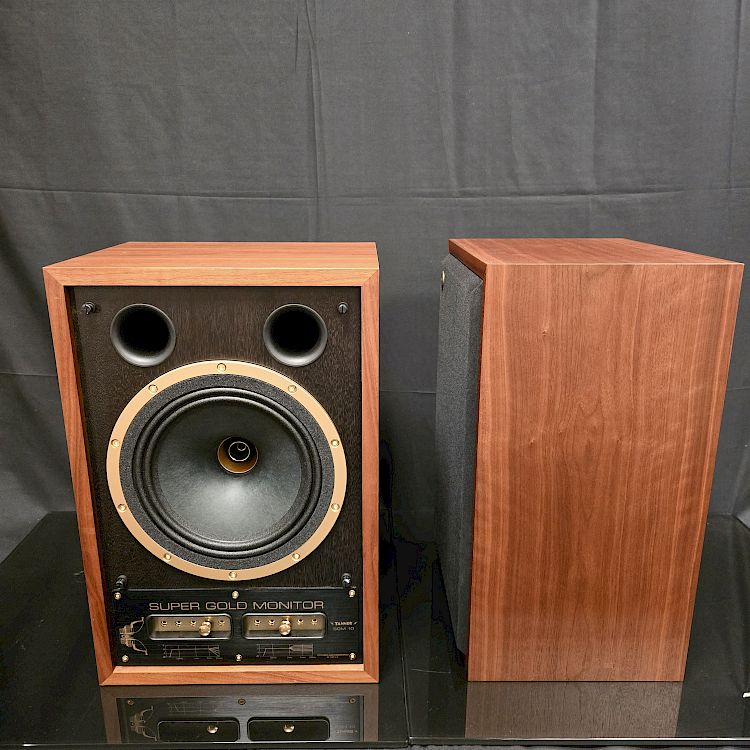

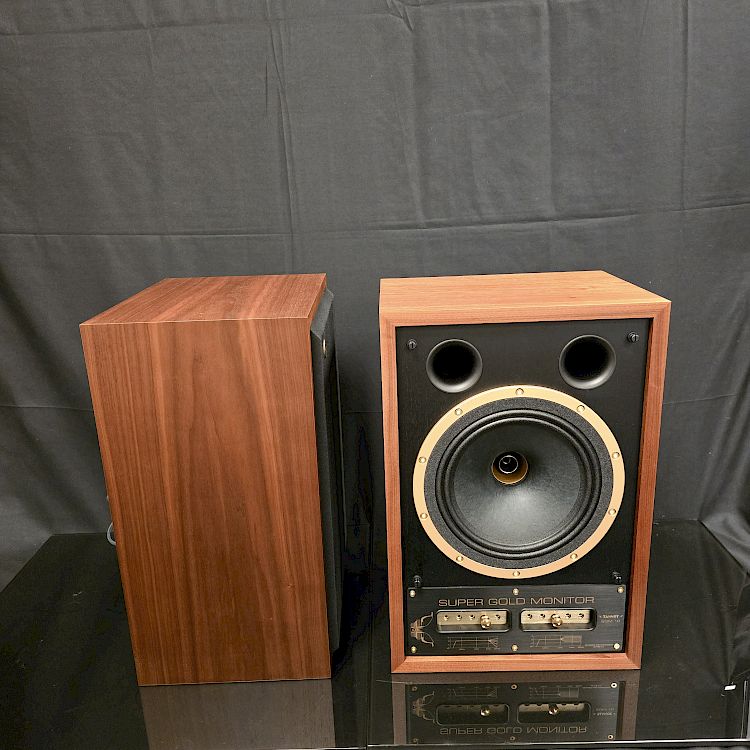

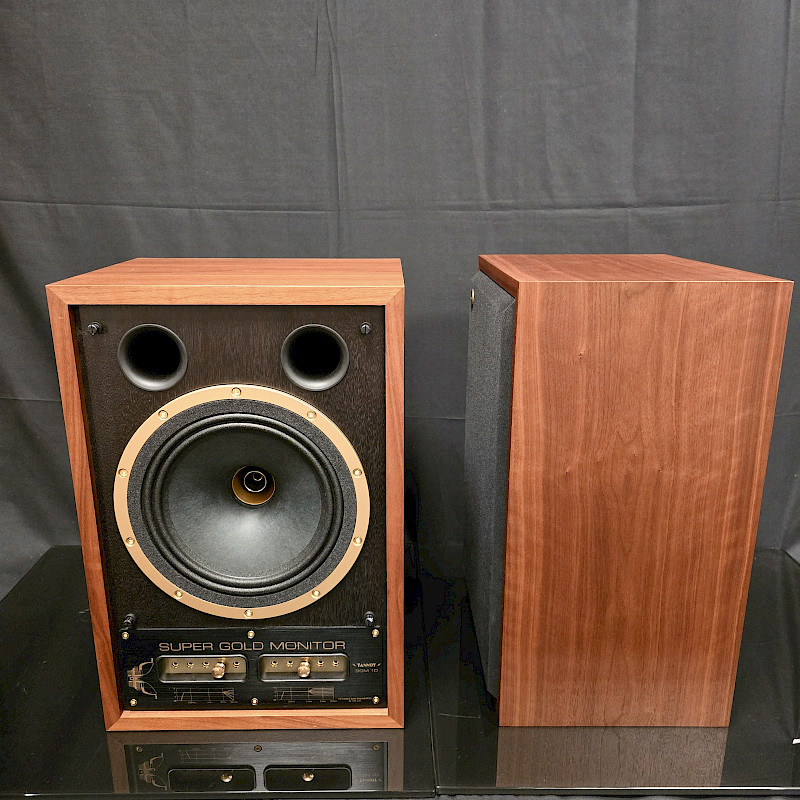

Tannoy SGM 10

About this product

We are offering for sale our Tannoy SGM 10 Ex-demo standmount speaker which have had minimal use from new.

Finish: Walnut
Serial Number:
Date Received: 28/02/2024
Condition: Unmarked
Packaging: Yes
Accessories: Instruction manual
Delivery Options: In-store collection. Delivery available (ask for details).
Warranty: 12 months
New Price: £5,995
Saving: £1,000
Sale Price: £4,995

The Tannoy SGM 10 standmount speakers have 10” woofers that deliver that amazing sweet spot in between rich lows and tight and fast-responding mids and highs. They are the perfect companion when listening to music with fast transients and plenty of attack. For instance, Funk, Electronica, World Music and Contemporary Jazz comes to mind. That said, they are perfectly capable of giving you the chills when listening to Classical Music, Rock, Pop or any other music genre.

With Tannoy’s Dual Concentric design, the woofer and tweeter are literally merged together, which positions them on the exact same axis, giving you best-in-class phase coherence. Since the sound is coming from the same point, it is a true point-source imaging scenario, and adding to that a spherical wave front that ensures an extremely even dispersion both vertically and horizontally, the Super Gold’s off-axis performance is breath-taking.

But what is the benefit when listening? You simply get a very wide and true sweet-spot, which means that you don’t have to sit dead-centre in front of the speakers to enjoy every single, subtle detail in the music. You can move around, or when you have company, everyone can enjoy listening even if they are not directly in front of the speakers.

Technical Specifications

Frequency response: 40 Hz – 30 kHz ± 6 dB

Recommended amplifier power: 20 – 200 W

Power handling (IEC): 100 W continuous, 400 W peak

Sensitivity: 89 dB (1 W @ 1 m)

Impedance: 8 Ω

Components:

Low frequency dual concentric: 1 x 10″ (254 mm) paper pulp cone with twin roll impregnated fabric surround, 52 mm (2″) edge wound voice coil

High frequency dual concentric: 1 x 1.3″ (33 mm) aluminium/magnesium alloy dome with edge-wound voice coil

Crossover:
Frequency: 1.2 kHz

Type: Bi-wired, hard wired passive, low loss 2nd order low pass, 1st order high pass

Adjustment: ±3 dB over 1 kHz to 30 kHz shelving, 2 dB to -6 dB per octave over 5 kHz to 30 kHz slope

User controls: treble roll off, treble energy

Enclosure:
Type: Twin distributed port

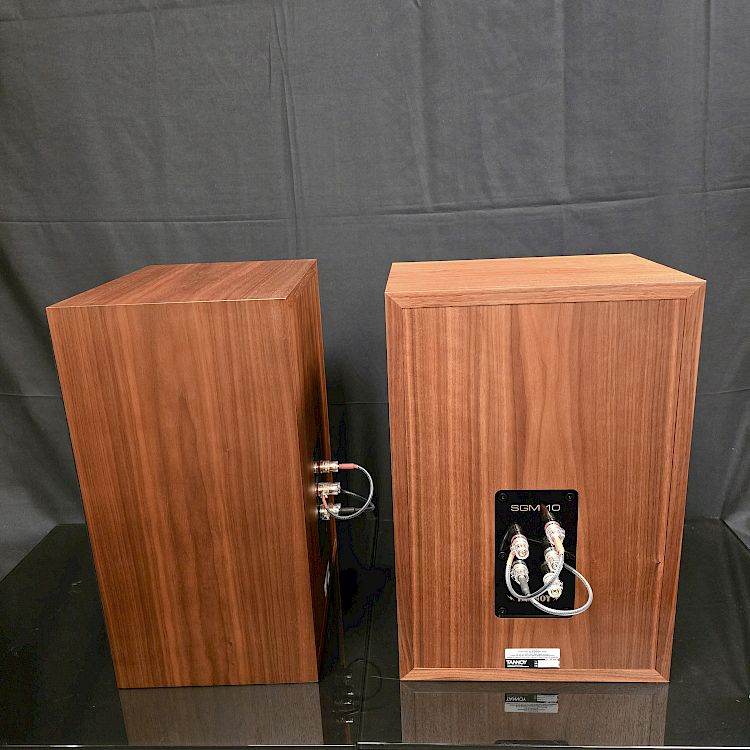

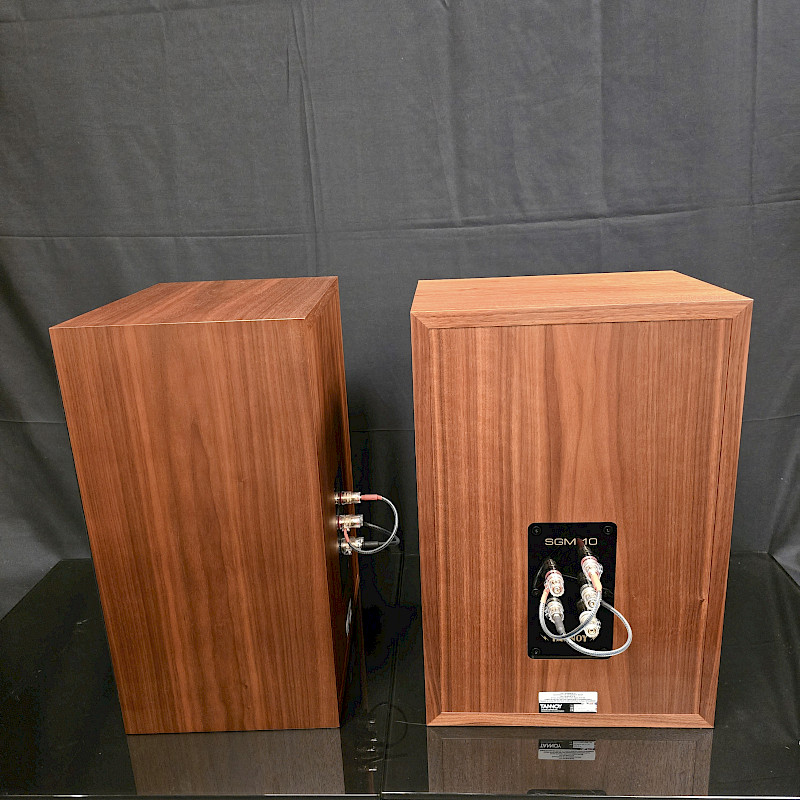

Connectors: 5 x 4 mm 24ct Tannoy customized binding posts

Dimensions HWD:350.5 x 309 x 523.2 mm (13.8 x 12.2 x 20.6″)

Net weight: 18.5 kg (40.8 lbs)

Construction: 19 mm (3/4″) Particle Board, MDF with plywood internal bracing – heavily damped

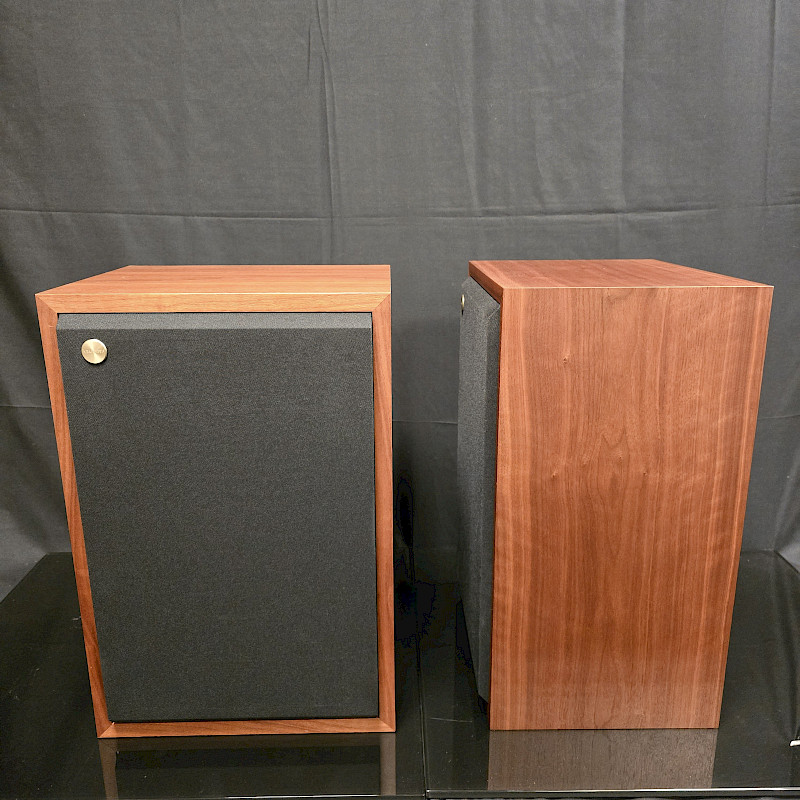

Finish: Walnut veneer and high acoustic transparency nylon grill cover

Accessory pack (included):
Bi-wire bridge connectors
Tannoy High End Loudspeaker Wood Wax
Rubber feet
