Gold Note PSU-10 for sale

About this product

We are offering for sale our Gold Note PSU-10 ex-demo external power supply which has had minimal use in conjunction with the Gold Note PH-10 phono stage. The reason for the sale is to refresh our demonstration stock with a new model.

Finish: Black
Serial Number: 92264
Date Received: 20/02/2025
Condition: Unmarked
Packaging: Yes
Accessories: Mains cable, PSU link cable, instruction manual
Delivery Options: In-store collection. Delivery available (ask for details).
Warranty: 12 months
New Price: £1,200
Saving: £150
Sale Price: £1,050

The Gold Note PSU-10 External Power Supply has been designed to enhance your Gold Note system and are part of the modular design of the Gold Note creations.

All the special external power supplies have been developed with a Super Inductive Dual Choke hybrid design. They feature an inductive filter on the analogue stage and a dual choke design powered by a double inductor driving both the negative and positive high-current stages.

The Gold Note proprietary Dual Choke design perfectly filters the signal voltages to eliminate any interference and electrical noise from the AC power system.

With their massive power supply they provide a shield from the AC power grid. By achieving complete insulation, an ideal working environment is created for the electronics to perform at their best.

The large and ultra-clean power generated enhances noise reduction, greater dynamic, better resolution and finer audio details guaranteeing the best realism and musicality.

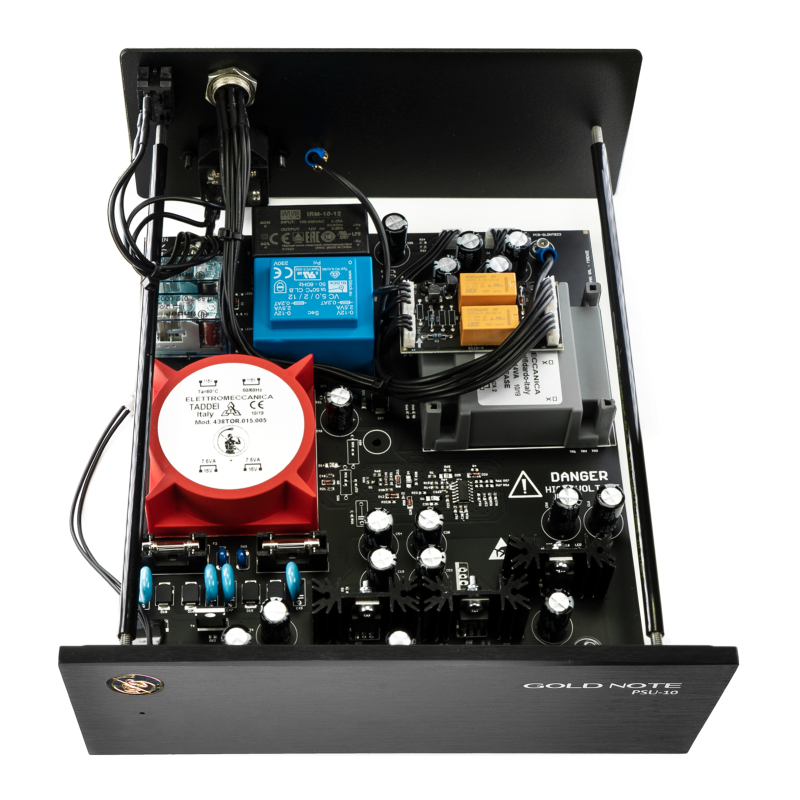

Dedicated to the PH-10 phono stage, the Gold Note PSU-10 features a 4 power supply stages with 4 ultra-low noise voltage regulators. The device is powered by 4 transformers ( 3 dedicated to the power supply and 1 for the inductive dual choke special filter).

IMPORTANT! – FOR PH-10 WITH SERIAL NUMBER LOWER THAN 56802

The PH-10 must be updated to the latest firmware in order to be powered by the PSU-10, to learn how you can update your PH-10 please visit the Download area on this website.

Technical Specifications

TECHNICAL FEATURES: Four rail audio grade power supply

MAXIMUM VARIATION OF OUTPUT VOLTAGE: 0,05 %

LINE NOISE REJECTION: >80dB

COMMON MODE NOISE REJECTION: >80dB

FULL POWER RESPONSE TIME: <2,5µsec

POWER SUPPLY: 100V – 120V / 220V – 240V with automatic selection, 50/60Hz

POWER CONSUMPTION: 25W

DYNAMIC POWER: >50W

STAND BY POWER: <1W

FUSE: 500mA T (time lag)

DIMENSIONS: 200mm W | 80mm H | 260mm D

WEIGHT:

Kg. 3 – net

Kg. 4 – boxed
