Gold Note PH-10 for sale

About this product

We are offering for sale our Gold Note PH-10 ex-demo phono stage, which has had regular use due to popularity.

Finish: Black
Serial Number: 90443
Date Received: 15/08/2024
Condition: Unmarked
Packaging: Yes
Accessories: Mains cable, instruction manual
Delivery Options: In-store collection. Delivery available (ask for details).
Warranty: 12 months
New Price: £1700
Saving: £250
Sale Price: £1450

The Gold Note PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD and GAIN adjustments: a fully analogue design engineered exclusively with the best components to recreate the musical event in the most natural way possible. Being the first amplification stage of the audio chain, the phono stage assumes great importance and this is why the PH-10 offers the very best sound and versatility using the latest technology.

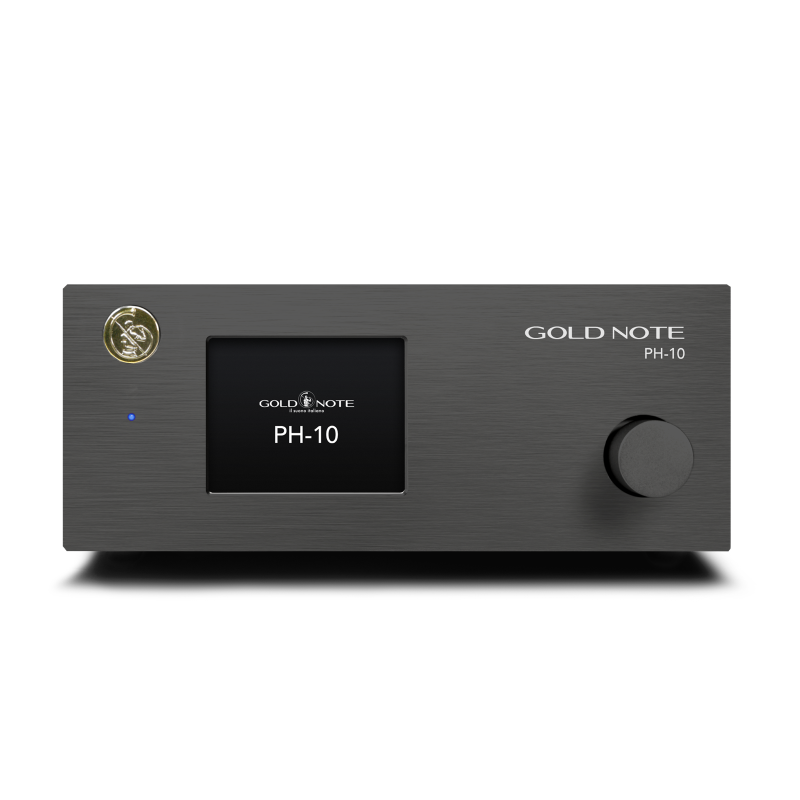

To control the PH-10 we developed the user friendly Single Knob Control (SKG). Combined with the color display this rotary joggle allows quick adjustments of any function in real time during music playback.

The Gold Note PH-10 lets you select the most appropriate EQ curve for every record: the RIAA, the DECCA LONDON or the AMERICAN COLUMBIA. All selection appears clearly as a graph on the large display. Each curve is enhanced by a modern Gold Note proprietary design that derived from the Neumann master cut machine project for superior dynamic and high-frequency extension.

The perfect cartridge matching is guaranteed with up to 9 different LOAD options and 4 different selectable GAIN levels that will let you adjust the preamplifier accurately to achieve the best sound experience with any kind of MM and MC cartridges.

With his two separate RCA inputs the Gold Note PH-10 can be connected to two different tonearms, each with independently adjustable settings stored into memory, even when the unit is switched off. This guarantees to the audiophile a unique flexibility and impressive user-friendliness.

To maximise the performance of the PH-10, we also developed the PSU-10, a dedicated external super inductive power supply that allows the PH-10 to achieve its fullest potential, reaching an even higher degree of musical realism, better dynamics and greater three-dimensionality sound.

Technical Specifications

EQUALISATION CURVE CONTROL: 3 selectable curves

INFRASONIC FILTER: 10Hz/36dB octave

FREQUENCY RESPONSE: 20Hz /20KHz  @ +/-0.3dB

THD (Total Harmonic Distortion): <0.05%

SIGNAL TO NOISE RATIO: -89dB

DYNAMIC RESPONSE: 105dB

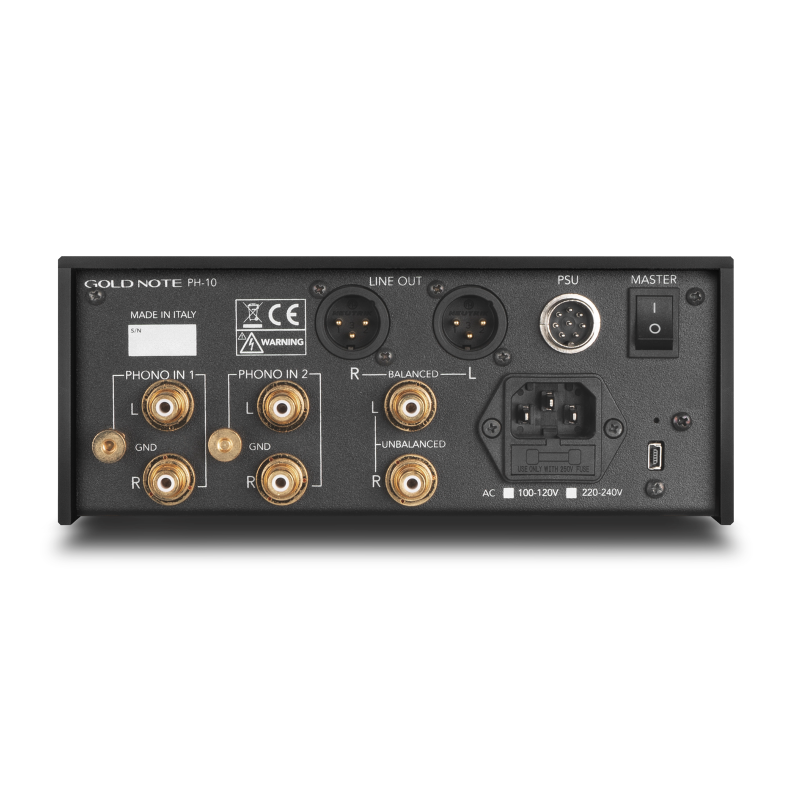

ANALOGUE INPUTS: MM/MC two independent stereo RCA

INPUT SENSITIVITY: 0.1mV MC up to 10.0mV MM

INPUT IMPEDANCE: 9 options

GAIN: 45/65dB (+6dB/-3dB)

CAPACITANCE (MM ONLY): 220pF

AUDIO OUTPUTS: Stereo unbalanced RCA and balanced XLR

LINE OUTPUT LEVELS (fixed): Stereo RCA @ 2V and balanced XLR @4V

OUTPUT IMPEDANCE: 50Ω

DIMENSIONS:

200W | 80H | 260D mm

290W | 180H | 390D mm – boxed

WEIGHT:

Kg. 3 – net

Kg. 4 – boxed
